EKOL 9: wastewater treatment plant for 60 people

A modern and powerful wastewater treatment plant for 60 people, ready for the demanding needs of larger plants. With our state-of-the-art equipment, you will achieve excellent water quality and reduce your environmental impact, ensuring a sustainable operation.

For larger operations, we have prepared a 60-person EKOL 9 wastewater treatment plant, which ensures safe and environmentally friendly wastewater treatment. With our innovative technology, you will achieve high treatment efficiency and reduce the negative impact on the environment.

Choose our powerful solution and ensure clean water for your however difficult operation. You can choose purifiers for less heavy-duty facilities, such as the EKOL 1, EKOL 2.5, EKOL 4 and EKOL 6, or for heavier-duty facilities, the EKOL 12 and EKOL 15.

Description and functions of the EKOL 9 wastewater treatment plant

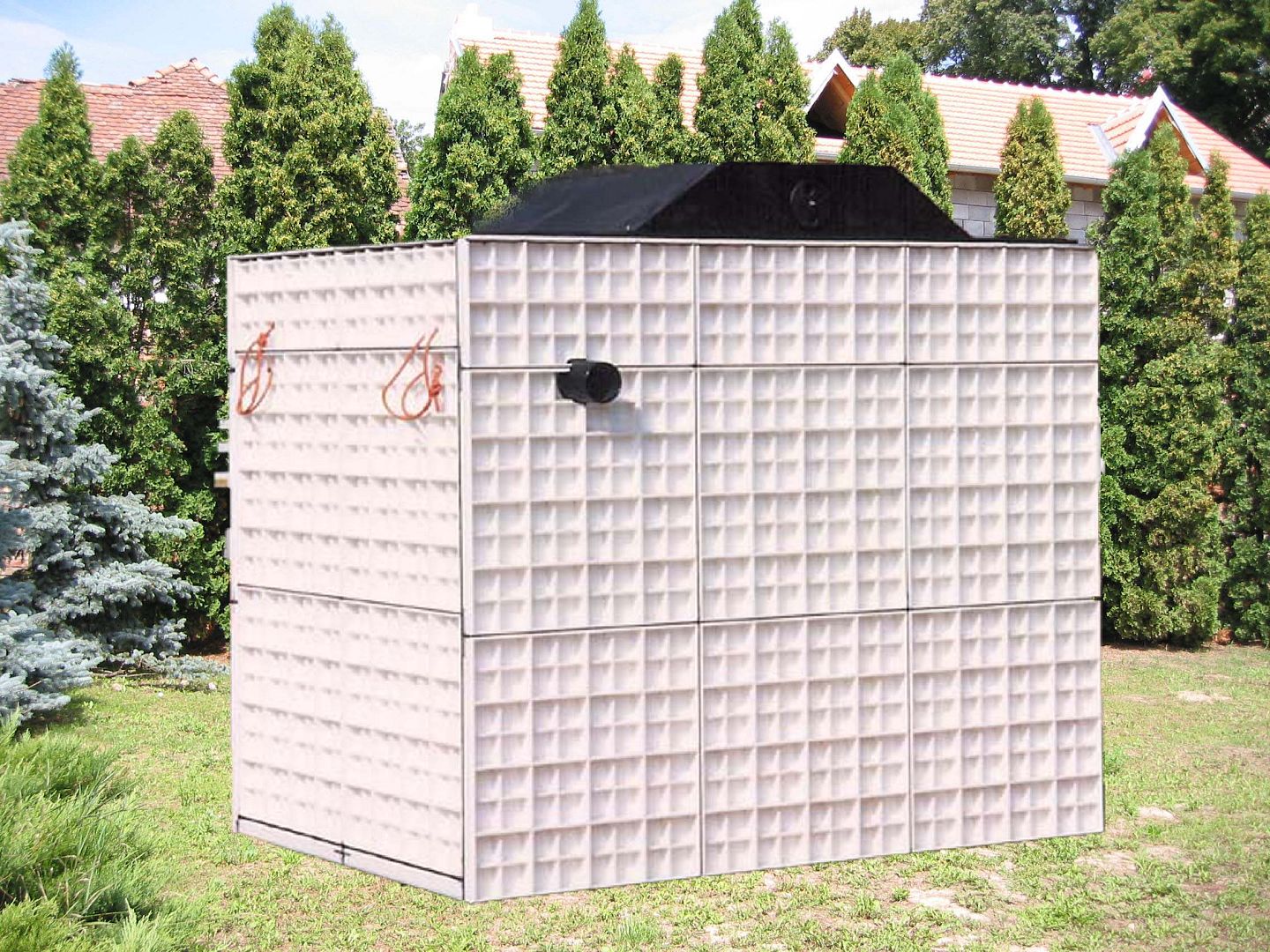

The EKOL 9 consists of a tank made of wall elements and polypropylene plates, closed by a split removable lid. The lid contains ventilation and clearing holes for sludge removal and is non-penetrating.

The tank is divided into a primary sedimentation area - settling area (A), a storage area (E), a biological treatment area (C) with a rotating biocontactor (B) and a settling area (D). The biological contactor consists of a cage filled with small plastic elements. The rotation of the rotor is provided by a drive unit consisting of a sliding gear box, a V-belt transmission, an electric motor with a distributor.

Functional diagram of the EKOL 9 sewage treatment plant

The treatment is integrated in one packaged unit, where there is both a mechanical treatment section (A,D,E) and a biological treatment section (B,C). Mechanical treatment is carried out in a two-chamber settling tank (A) by simple sedimentation. A part of this area near the bottom is reserved for anaerobic sludge stabilisation, thickening and storage (E). Pre-treated water flows into the biological treatment area (C) where the progressive TF/SC method, first introduced in the USA 15 years ago, is used.

This treatment method uses the activity of sessile and emergent organisms. The composition of these micro-organisms is so different that they are complementary in their effects. This results in a balanced treatment effect, and at the same time a higher resistance to hydraulic and metabolic shocks compared to conventional wastewater treatment methods.

The activated mixture from the biozone (C) flows through a degassing chute into a vertical settling tank (D), which is connected to the biozone area (C) at the bottom. This ensures continuous dewatering of the settling tank (D) and the excess activated sludge is pumped back to the settling tank (A) by means of a wheel located on the periphery of the biorotor, where it is mixed with the freshly flowing polluted water.

In the settling and storage tank (A,E), the activated sludge flakes and the sludge water are separated and flow back together with the inflow to the biozone. In this way, communication between the biozone (C), the settling tank - septic tank (A) and the settling tank (D) is ensured. The clean water outlet trough from the settling tank (D) is equipped with adjustable brick walls to prevent floating suspended solids from the surface of the settling tank from escaping into the outlet.

Drawing of the sewage treatment plant
Section of the sewage treatment plant

How to maintain the EKOL 9 sewage treatment plant

EKOL seriessewage treatment plants are maintenance-free. The great advantage is that their operation does not require daily servicing and their function will be maintained unless the power supply is interrupted. For optimum operation of the EKOL 9 maintenance-free sewage treatment plant, it is important to lubricate the bearings 2 times a year and drain the stored sludge once a year.

Where the EKOL 9 is used

Ideal for cases without a sewer connection, EKOL all-plastic mechanical-biological wastewater treatment plants are used to treat sewage from apartment buildings, recreational facilities, hotels, camping sites, social facilities, farms and factories for 60 equivalent persons.

The initial basis for the design and installation of WWTPs are the requirements of the water management authorities for the quality of water in the respective watercourse into which the treated wastewater is discharged, the requirements of investors and planning authorities.

Technical data of the EKOL 9 wastewater treatment plant

  Unit EKOL 9
Equivalent. Residents EO 60
Daily water flow

m3/day

9,0
Daily BOD5 contribution kg/day 3,6
Water depth mm 2 000
Total usable volume m3 15,4
Volume of settling (sludge) space m3 9,2
Volume of active space m3 3,7
Volume of existing space m3 2,3
Area of dosaz. of the tank m2 2,0
RBC rotor area m2 362
Rotor speed RPM 5,2
Engine power W/400 V 180
Total weight kg 1 700
Technical data
Length mm 4 000
Width mm 2 160
Tank height mm 2 500
Total height mm 2 900
Inlet height mm 2 130
Outlet height mm 1 880
